Business Type Manufacturer, Exporter, Supplier, Retailer, Wholesaler, Trader
Application Heating, Lighting, Overhead
Color Brown
Conductor Material Copper
Click to view more

Preferred Buyer From

Location Anywhere in India

Product Details

Thickness Approx.
0.9
Calculating weight kg/km (Approx.)
25

Braided Wire is also Electrolytic Copper Wire which is drawn and annealed , but main thing is this that all wires in the same are Braided together which is done in all the material like Bare Copper, Tin Plated , Silver Plated which are then used in Shielded Cable, Earthing Wire, D.Solder Wire, CRT Earthing Wire Assembly, Control Panel, Switch Gear Box, MCV Etc.

Adopting copper standard wire, copper braided wire to be conductor, its two terminals is copper pipe whose surface is silver or tin plating, the connector size is produced in the light of customer size, then passing special processing and made to be flexible joint, flexible grounding. Its conductive ratio high and anti-fatigue ability strong.

Braided Copper Wire is carried as Flat Braided Wire or Tubular Braided Wire. These tinned copper braid products are both listed as QQ-B-575. Our braided MIL Spec products have physical and electrical properties that cannot be outdone. Please see our product pages listed below for full product specifications.
AA59569 Flat Braided Copper Wire (formerly QQ-B-575)
AA59569 Tubular Braid (formerly QQ-B-575)

QQ-B-575 flat braided wire has tinned copper strands woven and rolled flat to specfic width depending on construction. Tubular Braid QQ-B-575 wire has a tinned copper braid woven in a completely round configuration.

Usage
The copper braided wire is used as flexible jointing write of electric appliance、switch appliance、electric stove and strage battery etc.It also could be used as grounding wire in electrical working.

Technique performance
Copper braided wire adopts super-quality round copper wire or tining soft round copper wire to be braided in multiple-thread one layer or many layers.
The DC electrical resistivity(20℃)of copper braided wire is lower than 0.022Ω .mm2/m,the DC electrical resistivity(20℃)of tining copper braided wire is lower than 0.234Ω .mm2/m.

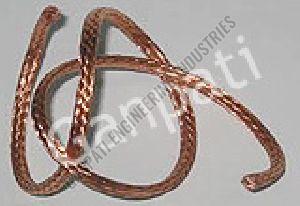

Braided Copper Wire
Copper with chemical symbol Cu and atomic number 29 is one of the most useful metals ever used for electrical and chemical industries. Having extremely high electrical conductivity and thermal conductivity makes copper as the preferred choice for manufacturers and producers of several commodities. This is the reason that production of copper wires is witnessing a constant increase over several years.

Braided copper wires are extensively used for high quality electrical products such as high and low volt electrical appliances, mining explosion devices, proof switches, automobile industry and marine industry. Braided copper wires are mainly formed by combining or braiding tin coated copper wires, silver coated copper wires and other such varieties, depending on the specific usage.

Braided copper wires are mainly used and implemented where the focus and requirement is more on the flexibility and ease of usage. While normal copper wires and tin copper wires are primarily used in those appliances where straight and rigid use of wires is being executed, braided copper wires are lot more flexible. Examples being headphone cables, speaker wires, jewellery creation and deep sea operations.

Braided copper wires are usually available in the form of wire assembly, shielding cable, soldering wire, control panel, switch gear box etc. Due to the high demand and usage of braided copper wires, the demand for braided connectors and jointers has also shot up in recent years. More and more electrical appliances and devices are now opting for braided copper wire for flexible use and execution.

If you are searching for braided copper wire, then your search ends right here. Your search for high quality braided copper wire finally ends with Ganpati Engineering. Having more than 30 years of experience in providing high quality and world class copper products, Ganpati Engineering is the name to reckon with.
