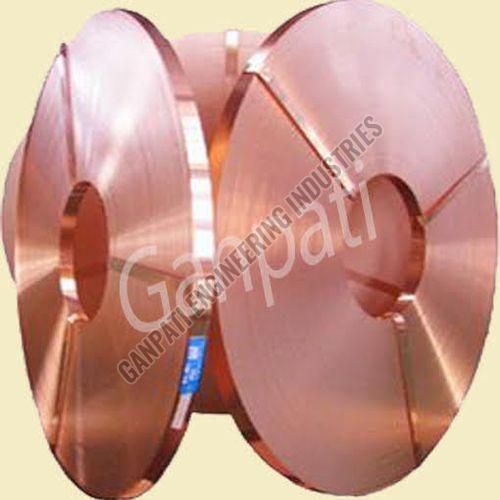

Ganpati Engineering provides world class copper strips which meet stringent quality guidelines as per global standards. We manufacture highly productive and efficient copper strips in standard dimensions as well as customized as per customizable dimensions based on your specific requirements.
Some of the major applications of copper strips include:
Automotive heat exchangers | Electrical devices | Electronics devices | Circuit Connectors | Assembly line connectors | Electronic cladding | Zippers and Fasteners | Transformer strips | Pressing applications and Stamping applications | Submersible cables | Telecommunication cables | Gaskets | Heat exchangers for heating and cooling mechanisms | Etc.
Besides these above listed major applications, our high class copper strips can effectively provide solutions to several other applications as well. Primarily, there are two types of copper strips available with us: Very Long Strips or VLS and Very Thin Strips or VTS.
With over 20 years of experience in providing world class copper products, Ganpati Engineering is the name to reckon with in this industry.
Specifications of Copper Strip :
1) Thickness: 0.035mm- 2.5mm, 2) Width: 610mm max. Coil weight: 3 ton Max , 3) Grade: C1100 / C1020 / C1220 , 4) Chemical Composition:C1100: Cu >99.90% C1020: Cu >99.96% C1220: Cu >99.97%; P 0.015-0.04% , 5) Oxygen content:C1100: O < 500PPM C1020: O < 50PPM , 6) Temper: O, 1/4H, 1/2H, H O: HV<70; 1/4H:HV 65-85; 1/2H:HV 80-100; H:HV >100 , 7) Electric 20℃Conductivity:C1100/C1020 >97% ;C1220 >80% -
C10100 Oxygen Free High Conductivity Copper (OFHC) in Sheet / Plate, Rod & Tubing. We carry a very large range of sizes and will cut the material to length.
C10100 OFHC Copper is produced by the direct conversion of selected refined cathodes and castings under carefully controlled conditions to prevent contamination of the pure oxygen-free metal during processing. The method of producing OFHC copper ensures extra high grade of metal with a copper content of 99.99%. With so small a content of extraneous elements, the inherent properties of elemental copper are brought forth to a high degree.
